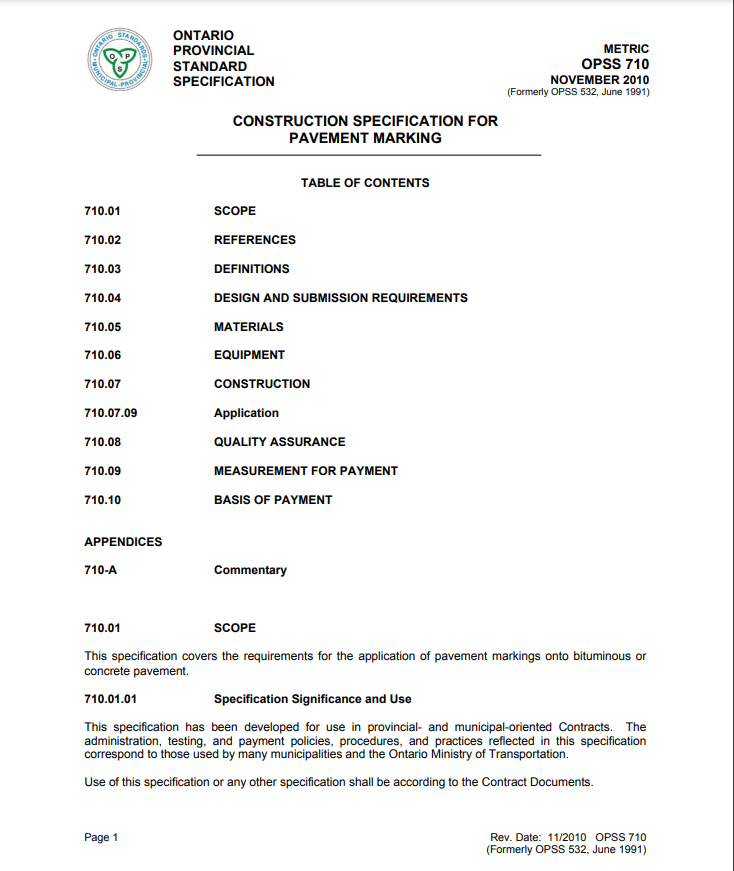

710.01 SCOPE This specification covers the requirements for the application of pavement markings onto bituminous or concrete pavement.

710.01.01 Specification Significance and Use This specification has been developed for use in provincial- and municipal-oriented Contracts. The administration, testing, and payment policies, procedures, and practices reflected in this specification correspond to those used by many municipalities and the Ontario Ministry of Transportation. Use of this specification or any other specification shall be according to the Contract Documents. Page 1 Rev. Date: 11/2010 OPSS 710 (Formerly OPSS 532, June 1991)

710.01.02 Appendices Significance and Use Appendices are not for use in provincial contracts as they are developed for municipal use, and then, only when invoked by the Owner. Appendices are developed for the Owner’s use only. Inclusion of an appendix as part of the Contract Documents is solely at the discretion of the Owner. Appendices are not a mandatory part of this specification and only become part of the Contract Documents as the Owner invokes them. Invoking a particular appendix does not obligate an Owner to use all available appendices. Only invoked appendices form part of the Contract Documents. The decision to use any appendix is determined by an Owner after considering their contract requirements and their administrative, payment, and testing procedures, policies, and practices. Depending on these considerations, an Owner may not wish to invoke some or any of the available appendices.

710.02 REFERENCES When the Contract Documents indicate that provincial-oriented specifications are to be used and there is a provincial-oriented specification of the same number as those listed below, references within this specification to an OPSS shall be deemed to mean OPSS.PROV, unless use of a municipal-oriented specification is specified in the Contract Documents. When there is not a corresponding provincial-oriented specification, the references below shall be considered to be to the OPSS listed, unless use of a municipal-oriented specification is specified in the Contract Documents. When the Contract Documents indicate that municipal-oriented specifications are to be used and there is a municipal-oriented specification of the same number as those listed below, references within this specification to an OPSS shall be deemed to mean OPSS.MUNI, unless use of a provincial-oriented specification is specified in the Contract Documents. When there is not a corresponding municipal-oriented specification, the references below shall be considered to be the OPSS listed, unless use of a provincial-oriented specification is specified in the Contract Documents. This specification refers to the following standards, specifications or publications:

Ontario Provincial Standard Specifications, Material

OPSS 1712 Organic Solvent Based Traffic Paint

OPSS 1713 Thermoplastic Pavement Marking Materials

OPSS 1714 Field Reacted, Polymeric Pavement Marking Materials

OPSS 1715 Preformed Plastic Pavement Marking Tape

OPSS 1716 Water-Borne Traffic Paint

OPSS 1750 Traffic Paint Reflectorizing Glass Beads

Ontario Ministry of Transportation Publications

Manual of Uniform Traffic Control Devices for Ontario, MUTCD
